Brand Name : YUTAI
Model Number : YT-2006
Certification : CE
Place of Origin : China
MOQ : 1Set
Price : $513
Payment Terms : L/C, T/T
Supply Ability : 300Sets/month
Delivery Time : 15days
Packaging Details : Wooden case
Voltage : 220v/50hz
Power : 0.1kw
Air pressure : 0.4-0.6Mpa
Machine dimension : 830*650*930mm
Machine weight : 115kg
The diameter of the air bag : 190mm
Suitable for solidified compression of various shoes when being fitted with soles by way of adhering. To work, adjust the required pressure through the pressure adjusting valve and set the pressure-keep time with the time with the time relay, then put the shoe into the rubber bag of the sealed air barrel at will and put on the barrel cover. The compressed air starts automatic filling and quick discharging within the set time, open the cover and take out the shoes. Two sealed air barrels work in turn, with one at the left and the other at the right and very simple and quick operation. It is very economical and really an ideal must equipment for sole pressing.





|
|

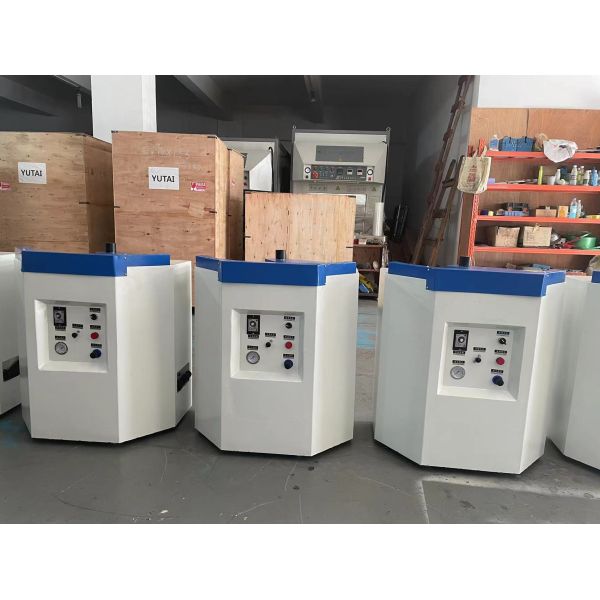

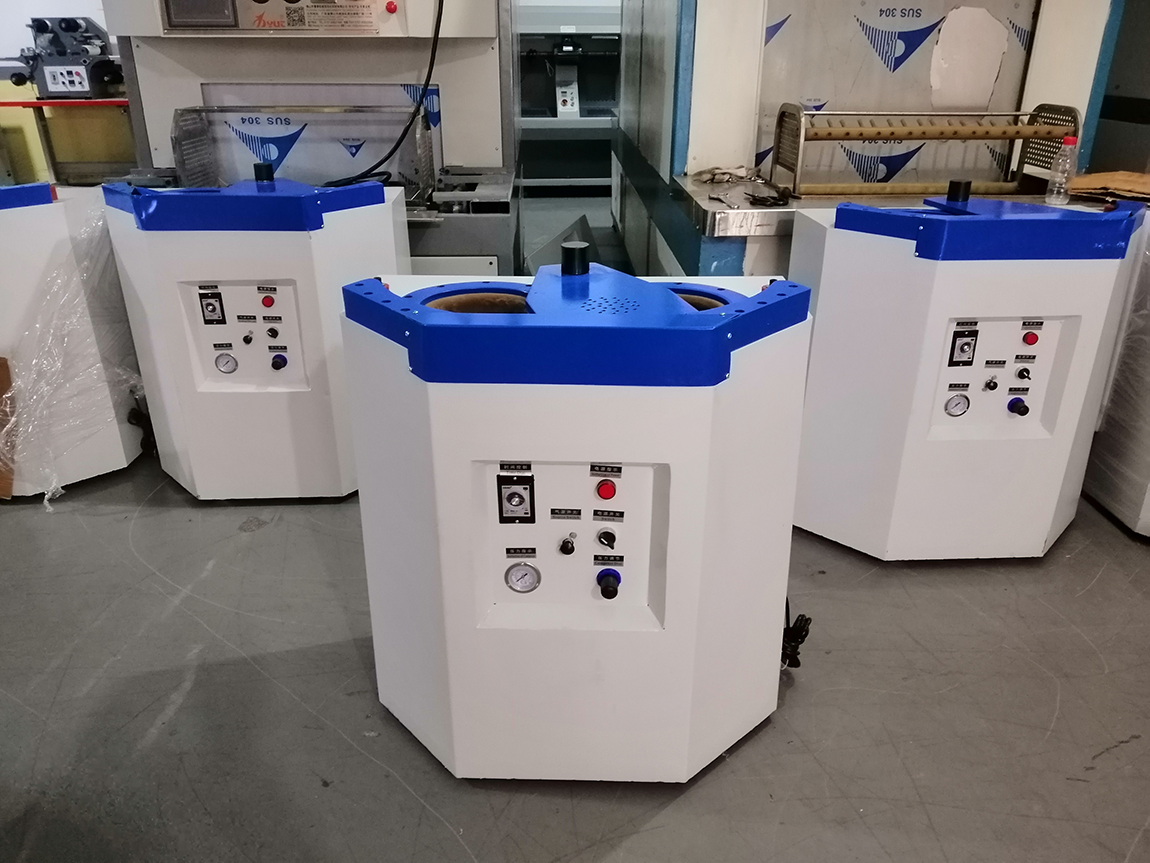

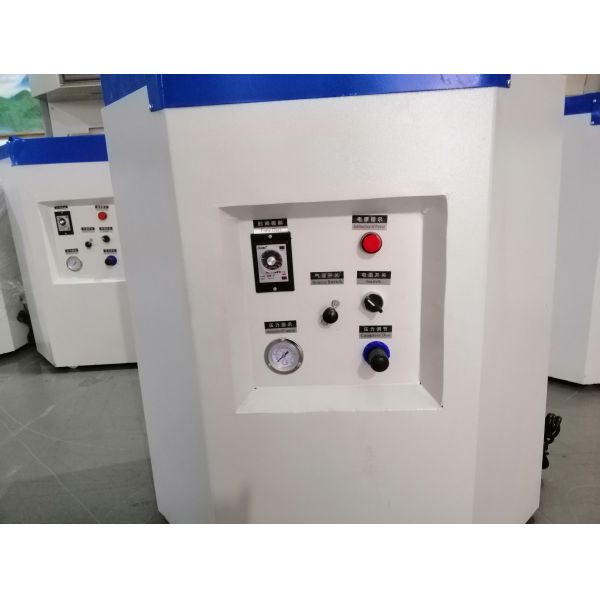

Double Tanks Type Pneumatic Shoe Sole Press Attaching Laminating Machine Footwear Machine Images |
